상세설명
|
사양→ |
응축열량(kcal/h) | 전열면적 (㎡) |
접속관경(￠) | 휀&모터 (￠xkwxPxEA) |
풍량 (CMM) |

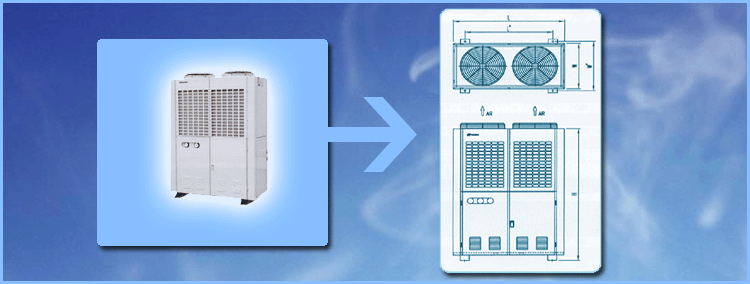

외형치수(LxWxH) | 앵커치수 (L″xW″) |
중량(kg) | |
|
모델↓ |
IN | OUT | |||||||
| CU-V030 | 9950 | 26 | 22.22 | 12.70 | 500x0.1x8x1 | 57 | 770x740x805 | 650x280 | 67 |
| CU-V050 | 16600 | 41 | 22.22 | 12.70 | 600x0.2x8x1 | 95 | 920x840x950 | 800x305 | 84 |
| CU-V075 | 24900 | 63 | 28.58 | 15.88 | 500x0.1x8x2 | 143 | 1320x740x955 | 1200x285 | 110 |
| CU-V100 | 33200 | 83 | 34.92 | 19.05 | 600x0.2x8x2 | 190 | 1610x840x1000 | 1490x310 | 140 |
| CU-V150 | 49800 | 125 | 41.28 | 22.22 | 650x0.4x8x2 | 285 | 1625X930X1000 | 1505x340 | 170 |
| CU-V200 | 66400 | 163 | 41.28 | 28.58 | 750x0.4x8x2 | 380 | 2070x1030x1000 | 1950x440 | 210 |
| CU-V250 | 83000 | 204 | 53.98 | 28.58 | 700x0.4x8x3 | 475 | 2540x980x1000 | 2420x390 | 270 |
| CU-V300 | 96600 | 277 | 53.98 | 28.58 | 750x0.4x8x3 | 570 | 2740x1050x960 | 2620x460 | 315 |
| CU-V400 | 132800 | 332 | 53.98 | 28.58 | 700x0.4x8x4 | 680 | 2230x1863x1307 | 1910x945 | 450 |
| CU-V500 | 166000 | 416 | 53.98 | 28.58 | 600x0.2x8x6 | 690 | 2260x1705x1240 | 1940x790 | 560 |
| CU-V600 | 199200 | 547 | 79.38 | 41.28 | 650x0.4x8x6 | 735 | 2730x1805x1240 | 2410x890 | 650 |
