상세설명

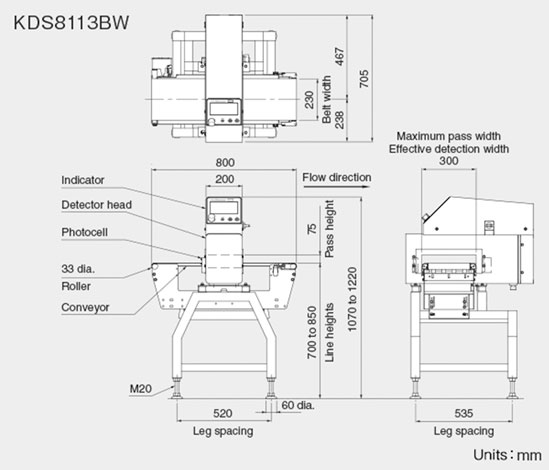

| Model | KDS8113BW | |
|---|---|---|
| Pass height | 75 mm | |
| Maximum pass width | 300 mm | |
| Detection sensitivity 1 | Fe sphere | 0.4 mm dia |
| SUS304 sphere | 0.7 mm dia | |
| Belt width | 230 mm | |
| Display | 7-inch color TFT LCD | |
| Operation method | Touch panel (Start, Stop, and Home are direct push buttons) | |
| Preset memory | Maximum 200 | |
| Belt speed | 10 to 90 m/min (variable speed depending on Product No.) | |
| Maximum product weight 2 | 5 kg [BW (Waterproof) types can support up to 15 O.However, the belt speed is 5 to 49 m/min] | |
| Power requirements | 100 to 120 Vac +10% –15% or 200 to 240 Vac +10% –15%, single phase, 50/60 Hz, 200 VA, rush current 62 A (typ.) (20 ms or less) | |
| Mass | 102 kg | |
| Environmental conditions | 0° to 40°C, relative humidity 30% to 85%, non-condensing | |
| Protection class | IP66 compliance | |
| Exterior | Stainless steel (SUS304) | |
| Data output | USB port as an option (USB2.0), Ethernet interface as an option (10BASE-T, 100BASE-TX) | |
