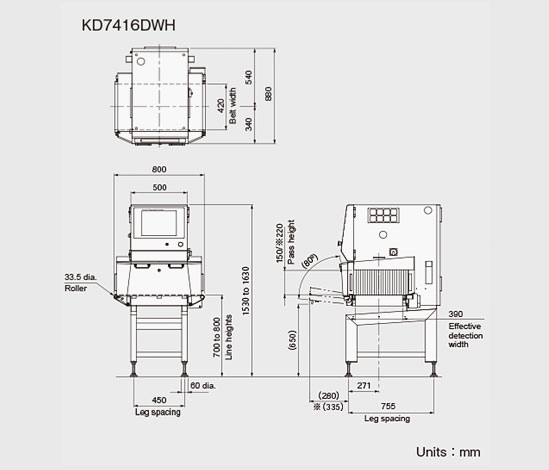

| Model | KD7416DWH |
|---|---|
| Detection sensitivity 1 | Fe sphere and SUS sphere 0.3 mm dia., SUS wire 0.2 mm dia.× 2 mm long |
| X-ray output | Tube voltage 25 to 80 kV, tube current 0.3 to 10.0 mA, output 7.5 to 350 W |
| Safety | X-ray leakage maximum 1μSv/h or less, prevention of x-ray leakage by safety devices |
| Display | 15-inch color TFT LCD (unified image monitoring screen and operation screen) |
| Operation method | Touch panel (with touch buzzer) |
| Product size 2, 3 | Maximum width 390 mm, maximum height 150 mm |
| Belt width | 420 mm |
| Masking function | Equipped as standard |
| Missing product detection function | Equipped as standard |
| Clip check function | Equipped as standard |
| Preset memory | Maximum 100 |
| Belt speed 4 / Maximum product weight 5 |
5 to 60 m/min, maximum 5 kg 5 to 40 m/min, maximum 10 kg (optional) |
| Power requirements 6, 7, 8 | 100 to 120 or 200 to 240 Vac, single phase, 50/60 Hz, 1.0 kVA, rush current 80 A (typ.) (5 ms or less) |
| Mass | 280 kg |
| Environmental conditions 9 | Temperature: 0º to 35ºC (0º to 40ºC with optional air conditioner), relative humidity: 30% to 85%, non-condensing |
| Protection class | Conveyor IP66, other parts IP40, tool free belt removal |
| Exterior | Stainless steel (SUS304) |
