가격 가격협의

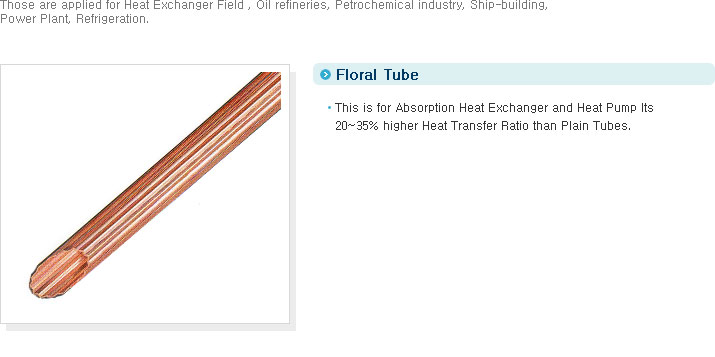

모델명 Floral Tube

제품분류 밸브/배관자재

업체명 별솔금속

전화번호 0504-0668-0423

등록일 20.06.24

12Fin per Inch
Drawing No	Plain End		Finned Area
	Dimension (mm)		Dimension (mm)
	Out Diameter	Wall Thickness (Average)	Groove Depth	Groove Angle	Min Wall	Root	Inside	Outside
					Under Fin	Dia	Area(m2/m)	Area(m2/m)
Material	C12200 Copper Tube
BSFL12-1	16.00	0.60	0.70	30.00

15Fin per Inch
Drawing No	Plain End		Finned Area
	Dimension (mm)		Dimension (mm)
	Out Diameter	Wall Thickness (Average)	Groove Depth	Groove Angle	Min Wall	Root	Inside	Outside
					Under Fin	Dia	Area(m2/m)	Area(m2/m)
Material	C12200 Copper Tube
BSFL15-1	19.00	0.60	0.70	24.00
