상세설명

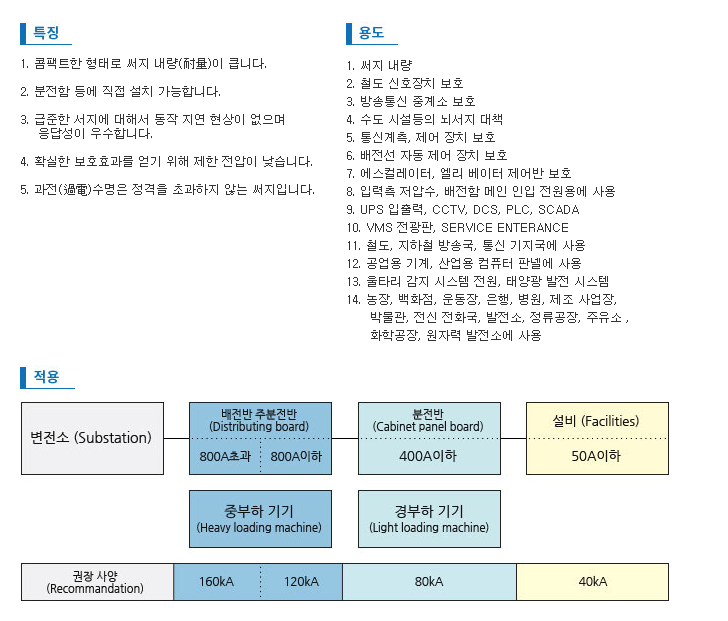

* 단상형
| Parts no | Maximum allowable voltage |
Energy | Rated wattage | Withstanding surge current |
Nominal voltage at 1mA(DC) current |
Maximum clamping voltage (8/20㎲) |
kA | |
|---|---|---|---|---|---|---|---|---|
| AC(ms) (V) |
DC (V) |
10/1,000㎲ (J) |
(W) | 8/20㎲ 1Time(A) |
(V) | V100A(V) | ||
| K20E390 | 25 | 31 | 14.6 | 0.2 | 3,000 | 39(35~43) | *77 | 3kA |
| K20E560 | 35 | 45 | 21 | 56(50~62) | *110 | |||
| K20E680 | 40 | 56 | 25.5 | 68(61~75) | *135 | |||
| K20E820 | 50 | 65 | 30.8 | 1.0 | 10,000 | 82(74~90) | 135 | 10kA |
| K20E271 | 175 | 225 | 101.3 | 270(243~297) | 455 | |||
| K20E471 | 300 | 385 | 176.3 | 470(423~517) | 775 | |||
| K20E681 | 420 | 560 | 232.5 | 680(612~748) | 1,120 | |||
| K20E821 | 510 | 670 | 246 | 820(738~902) | 1,355 | |||
| K20E102 | 625 | 825 | 300 | 1,000(900~1,100) | 1,650 | |||
| K20E152 | 900 | 1,220 | 449 | 1,500(1,350~1,650) | 2,475 | |||
| K20E182 | 1,000 | 1,465 | 540 | 1,800(1,620~1,980) | 2,970 | |||
| K25E271 | 175 | 225 | 170 | 1.0 | 15,000 | 270(243~297) | 455 | 15kA |
| K25E471 | 300 | 385 | 225 | 470(423~517) | 775 | |||
| K25E681 | 420 | 560 | 250 | 680(612~748) | 1,120 | |||
| K25E821 | 510 | 670 | 300 | 820(738~902) | 1,355 | |||
| K25E102 | 625 | 825 | 375 | 1,000(900~1,100) | 1,650 | |||
| K25E152 | 900 | 1,220 | 500 | 1,500(1,350~1,650) | 2,475 | |||
| K25E182 | 1,000 | 1,465 | 700 | 1,800(1,620~1,980) | 2,970 | |||
| K32E201 | 130 | 170 | 210 | 1.2 | 20,000 | 200(185~225) | 340 | 20kA |
| K32E271 | 175 | 225 | 255 | 270(243~297) | 455 | |||
| K32E471 | 300 | 385 | 405 | 470(423~517) | 775 | |||
| K32E681 | 420 | 560 | 450 | 680(612~748) | 1,120 | |||
| K32E821 | 510 | 670 | 545 | 820(738~902) | 1,355 | |||
| K32E102 | 625 | 825 | 620 | 1,000(900~1,100) | 1,650 | |||
| K32E152 | 900 | 1,220 | 780 | 1,500(1,350~1,650) | 2,475 | |||
| K32E182 | 1,000 | 1,465 | 850 | 1,800(1,620~1,980) | 2,970 | |||
| K40E201 | 130 | 170 | 340 | 1.4 | 40,000 | 200(185~225) | 340 | 40kA |
| K40E271 | 175 | 225 | 340 | 270(243~297) | 455 | |||
| K40E471 | 300 | 385 | 505 | 470(423~517) | 775 | |||
| K40E681 | 420 | 560 | 560 | 680(612~748) | 1,120 | |||
| K40E821 | 510 | 670 | 680 | 820(738~902) | 1,355 | |||
| K40E102 | 625 | 825 | 780 | 1,000(900~1,100) | 1,650 | |||
| K40E152 | 900 | 1,260 | 900 | 1,500(1,350~1,650) | 2,475 | |||
| K40E182 | 1,000 | 1,465 | 1080 | 1,800(1,620~1,980) | 2,970 | |||
| K53E201 | 130 | 170 | 330 | 1.6 | 70,000 | 200(185~225) | 340 | 70kA |
| K53E271 | 175 | 225 | 430 | 270(243~297) | 455 | |||
| K53E471 | 300 | 385 | 640 | 470(423~517) | 775 | |||
| K53E681 | 420 | 560 | 710 | 680(612~748) | 1,120 | |||
| K53E821 | 510 | 670 | 860 | 820(738~902) | 1,355 | |||
| K53E102 | 625 | 825 | 990 | 1,000(900~1,100) | 1,650 | |||
| K53E152 | 900 | 1,596 | 1,140 | 1,500(1,350~1,650) | 2,475 | |||
| K53E182 | 900 | 1,220 | 1,370 | 1,800(1,620~1,980) | 2,970 | |||
※ DC is applicable for Single phase+E only.
* Maximum clamping voltage from 39V to 68V is tested with current 25A.
■ Specifications and standards are subject to change without prior notice.
■ The special model could be made by your order.
