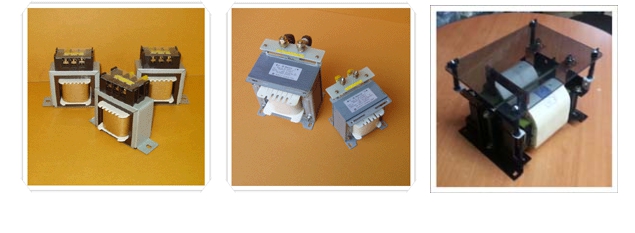

미쓰비시 인버터용 DC 리액터
DC Reactor
1 Product Checking
*Unpack the option unit, and ensure that the product received is as you
ordered and it is intact.
2 Installation
* Install according to the environment conditions on page 4.
* Fully take caution not to make the ambient temperature higher than the
permissible value (-10°C to +50°C). In addition, as the reactor itself
generates heat, leave sufficient clearances around it. (Independently of
the installation direction of the reactor 10 cm or more for the above and
below, 5 cm or more for the right and left)
3 Wiring

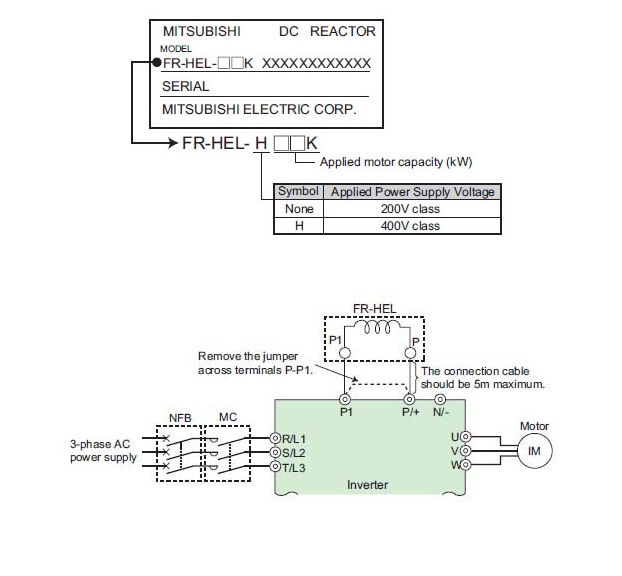

(1) Remove the jumper across terminals P-P1 of the inverter and connect
the reactor.
• Minimize the connection cable between the reactor and inverter so that the
length is within 5m. (For the size of the cable, refer to page 4)
• The jumper connected across terminals P1-P must be removed. Otherwise,
the reactor will not exhibit its performance.
• Reinstall the terminal block cover after wiring.
| 미쓰비시 인버터용 DC 리액터 (FR-HEL타입) |
| DC Reactor 1P 200V급 |
| |
|
모델 번호
Model No.
|
전류
A
|
inductance
mH
|

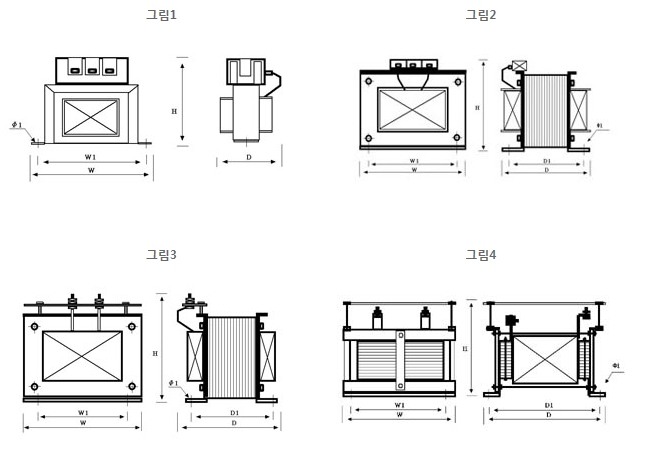

dimension (치수mm)
|
중량
Weight
|
비고
|
|
W
|
W1
|
D
|
D1
|
H
|
Ø1
|
|
FR-HEL-0.4k
|
1.8 A
|
9.58mH
|
71
|
61
|
50
|
0
|
67
|
4x6
|
0.4kg
|
그림1
|
|
FR-HEL-0.75k
|
3.4A
|
5.07mH
|
83
|
71
|
55
|
0
|
75
|
4x6
|
0.5kg
|
|
FR-HEL-1.5k
|
6.8A
|
2.53mH
|
97
|
83
|
60
|
0
|
80
|
4x7
|
0.9kg
|
|
FR-HEL-2.2k
|
10 A
|
1.75 mH
|
80
|
66
|
70
|
54
|
85
|
5x9
|
1.8kg
|
그림2
|
|
FR-HEL-3.7k
|
16.8A
|
1.04 mH
|
90
|
72
|
105
|
65
|
110
|
5x9
|
2.4kg
|
|
FR-HEL-5.5k
|
25 A
|
0.70 mH
|
100
|
80
|
110
|
64
|
110
|
5x10
|
2.5kg
|
|
FR-HEL-7.5k
|
34 A
|
0.51 mH
|
110
|
93
|
115
|
63
|
120
|
5x10
|
3.5kg
|
그림3
|
|
FR-HEL-11k
|
50 A
|
0.35 mH
|
110
|
93
|
110
|
60
|
120
|
5x13
|
4.0kg
|
|
FR-HEL-15k
|
68 A
|
0.25 mH
|
120
|
103
|
130
|
82
|
140
|
6x12
|
5.0kg
|
|
FR-HEL-18.5k
|
84 A
|
0.20 mH
|
137
|
120
|
136
|
85
|
170
|
5x12
|
6.5kg
|
|
FR-HEL-22k
|
100 A
|
0.17 mH
|
137
|
120
|
136
|
85
|
170
|
5x12
|
7.0kg
|
|
FR-HEL-30k
|
136 A
|
0.12 mH
|
156
|
136
|
170
|
91
|
185
|
6x13
|
10kg
|
그림4
|
|
FR-HEL-37k
|
168 A
|
0.10 mH
|
156
|
136
|
170
|
91
|
185
|
6x13
|
12kg
|
|
FR-HEL-45k
|
204 A
|
0.08 mH
|
195
|
171
|
210
|
186
|
260
|
8x10
|
19kg
|
|
FR-HEL-55k
|
250 A
|
0.07 mH
|
195
|
171
|
210
|
186
|
260
|
8x10
|
20kg
|
|
FR-HEL-75k
|
340 A
|
0.05 mH
|
190
|
90
|
230
|
185
|
250
|
10
|
25kg
|
|
| |
| 미쓰비시 인버터용 DC 리액터 (FR-HEL-타입) |
| DC Reactor 1P 400V급 |
|
모델 번호
Model No.
|
전류
A
|
inductance
mH
|
dimension (치수mm)
|
중량
Weight
|
비고
|
|
W
|
W1
|
D
|
D1
|
H
|
Ø1
|
|
FR-HEL-H0.4k
|
0.9A
|
38.6mH
|
71
|
61
|
50
|
0
|
67
|
4x6
|
0.4kg
|
그림1
|
|
FR-HEL-H0.75k
|
1.7A
|
20.4mH
|
84
|
71
|
55
|
0
|
75
|
4x6
|
0.5kg
|
|
FR-HEL-H1.5k
|
3.4A
|
10.2mH
|
97
|
83
|
60
|
0
|
80
|
5x7
|
0.9kg
|
|
FR-HEL-H2.2k
|
5 A
|
7.00mH
|
80
|
66
|
70
|
54
|
85
|
5x9
|
1.2kg
|
그림2
|
|
FR-HEL-H3.7k
|
8.4A
|
4.17mH
|
90
|
71
|
87
|
65
|
110
|
5x10
|
2.4kg
|
|
FR-HEL-H5.5k
|
12.5A
|
2.80mH
|
100
|
80
|
100
|
64
|
110
|
5x10
|
3.0kg
|
|
FR-HEL-H7.5k
|
17A
|
2.06mH
|
110
|
94
|
105
|
60
|
115
|
5x13
|
4.0kg
|
|
FR-HEL-H11k
|
25A
|
1.40mH
|
110
|
94
|
105
|
60
|
115
|
5x10
|
4.0kg
|
|
FR-HEL-H15k
|
34A
|
1.03mH
|
120
|
103
|
127
|
82
|
140
|
5x10
|
4.0kg
|
그림3
|
|
FR-HEL-H18.5k
|
42A
|
0.83mH
|
135
|
119
|
140
|
85
|
170
|
5x13
|
6.0kg
|
|
FR-HEL-H22k
|
50A
|
0.70mH
|
135
|
119
|
140
|
85
|
170
|
5x13
|
6.0kg
|
|
FR-HEL-H30k
|
68A
|
0.51mH
|
135
|
119
|
145
|
85
|
170
|
5x13
|
6.5kg
|
|
FR-HEL-H37k
|
84A
|
0.42mH
|
135
|
119
|
145
|
85
|
170
|
5x13
|
6.5kg
|
|
FR-HEL-H45k
|
102A
|
0.34mH
|
190
|
160
|
160
|
103
|
230
|
6x12
|
15kg
|
|
FR-HEL-H55k
|
125A
|
0.28mH
|
190
|
160
|
160
|
103
|
230
|
6x12
|
15kg
|
|
FR-HEL-H75k
|
170A
|
0.20mH
|
180
|
150
|
290
|
253
|
240
|
10x15
|
20kg
|
그림4
|
|
FR-HEL-H90k
|
200A
|
0.17mH
|
180
|
90
|
230
|
185
|
250
|
10
|
20kg
|
|
FR-HEL-H110k
|
250A
|
0.14mH
|
200
|
170
|
305
|
265
|
245
|
10x15
|
30kg
|
|
FR-HEL-H132k
|
300A
|
0.11mH
|
200
|
170
|
305
|
265
|
255
|
10x15
|
35kg
|
|
FR-HEL-H160k
|
360A
|
0.09mH
|
200
|
170
|
330
|
295
|
290
|
10x15
|
30kg
|
|
FR-HEL-H200k
|
450A
|
0.07mH
|
220
|
110
|
270
|
225
|
300
|
10
|
35kg
|
|
FR-HEL-H220k
|
500A
|
0.07mH
|
220
|
110
|
270
|
225
|
300
|
10
|
35kg
|
|
FR-HEL-H280k
|
630A
|
0.05mH
|
250
|
120
|
280
|
225
|
320
|
10
|
40kg
|
|
FR-HEL-H315k
|
715A
|
0.04mH
|
250
|
120
|
280
|
225
|
320
|
10
|
40kg
|
|
