상세설명

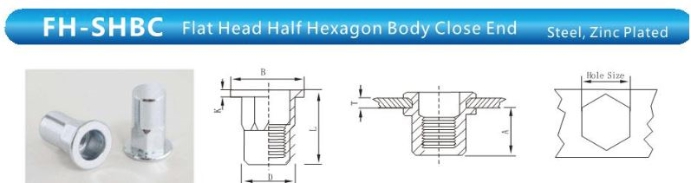

| 규격 | ITEM NO. | 접합범위 T(GRIP RANGE MIN/MAX) |
HOLE SIZE +0.1/-0 |
A (Ref.) |
D +0.07 -0.1 |
B | K | L | |
| M4 | FH-SHBC0420 | 0.5-2.0 | 6.0 | 11.0 | 5.9 | 9.0 | 0.8 | 15.0 | |
| M5 | FH-SHBC-0525 | 0.5-2.5 | 7.0 | 13.5 | 6.9 | 10.0 | 1.0 | 18.0 | |
| M6 | FH-SHBC-0630 | 0.5-3.0 | 9.0 | 17.0 | 8.9 | 12.7 | 1.3 | 23.0 | |
| M8 | FH-SHBC-0835 | 1.0-3.5 | 11.0 | 19.0 | 10.9 | 16.0 | 1.5 | 26.0 | |
| M10 | FH-SHBC-1040 | 1.0-4.0 | 13.0 | 25.0 | 12.9 | 19.0 | 1.7 | 33.0 |
