상세설명

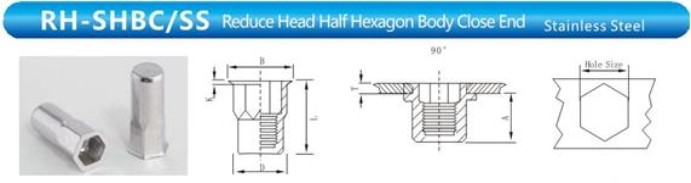

| 규격 | ITEM NO. | 접합범위 T(GRIP RANGE MIN/MAX) |
HOLE SIZE +0.1/-0 |
A (Ref.) |
D +0.07 -0.1 |
B | K | L | |
| M4 * 0.7P | RH-SHBC/SS-0420 | 0.5-2.0 | 6.0 | 11.5 | 5.9 | 7.0 | 0.5 | 18.0 | |
| M5 * 0.8P | RH-SHBC/SS-0525 | 0.5-2.5 | 7.0 | 13.5 | 6.9 | 8.0 | 0.5 | 18.0 | |
| M6 * 1.0P | RH-SHBC/SS-0630 | 0.5-3.0 | 9.0 | 15.8 | 8.9 | 10.0 | 0.6 | 21.5 | |
| M8 * 1.25P | RH-SHBC/SS-0835 | 1.0-3.5 | 11.0 | 18.2 | 10.9 | 12.0 | 0.65 | 24.0 | |
| M10 * 1.5P | RH-SHBC/SS-1040 | 1.0-4.0 | 13.0 | 23.2 | 12.9 | 14.5 | 0.75 | 30.5 |
