상세설명

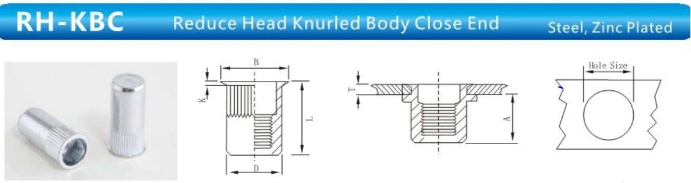

| 규격 | ITEM NO. | 접합범위 T(GRIP RANGE MIN/MAX) |
HOLE SIZE +0.1/-0 |
A (Ref.) |
D +0.07 -0.1 |
B | K | L | |
| M4 | RH-KBC-0430 | 2.0-3.0 | 6.0 | 11.0 | 5.9 | 7.0 | 0.5 | 16.0 | |
| M5 | RH-KBC-0535 | 2.0-3.5 | 7.0 | 12.5 | 6.9 | 8.0 | 0.5 | 17.5 | |
| M6 | RH-KBC-0645 | 3.0-4.5 | 9.0 | 15.5 | 8.9 | 10.0 | 0.6 | 22.0 | |
| M8 | RH-KBC-0845 | 3.0-4.5 | 11.0 | 17.0 | 10.9 | 12.0 | 0.6 | 24.5 | |
| M10 | RH-KBC-1050 | 3.0-5.0 | 13.0 | 18.2 | 12.9 | 14.0 | 0.7 | 26.0 |
