상세설명

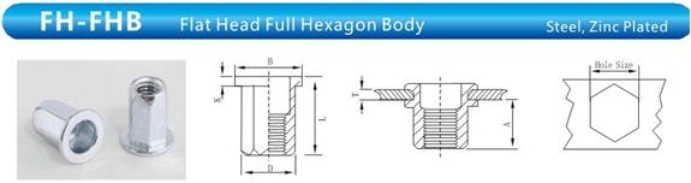

| 규격 | ITEM NO. | 접합범위 T(GRIP RANGE MIN/MAX) |
HOLE SIZE +0.1/-0 |
A (Ref.) |
D +0.07 -0.1 |
B | K | L |
| M4 * 0.7P | FH-FHB-0420 | 0.5-2.0 | 6.0 | 6.5 | 5.9 | 9.0 | 0.8 | 11.0 |
| M5 * 0.8P | FH-FHB-0525 | 0.5-2.5 | 7.0 | 8.0 | 6.9 | 10.0 | 1.0 | 14.0 |
| M6 * 1.0P | FH-FHB-0630 | 0.5-3.0 | 9.0 | 8.5 | 8.9 | 12.7 | 1.35 | 15.0 |
| M8 * 1.25P | FH-FHB-0835 | 1.0-3.5 | 11.0 | 10.5 | 10.9 | 16.0 | 1.5 | 18.0 |
| M10 * 1.5P | FH-FHB-1040 | 1.0-3.5 | 13.0 | 12.5 | 12.9 | 18.0 | 1.7 | 21.0 |
| M12 * 1.75P | FH-FHB-1250 | 2.0-5.0 | 16.0 | 16.5 | 15.9 | 23.0 | 2.0 | 27.0 |
