상세설명

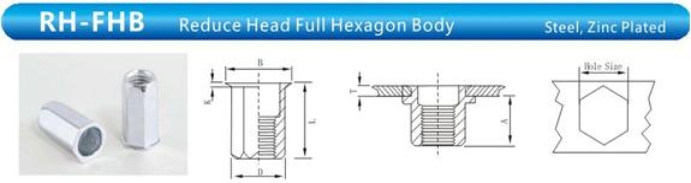

| 규격 | ITEM NO. | 접합범위 T(GRIP RANGE MIN/MAX) |
HOLE SIZE +0.1/-0 |
A (Ref.) |
D +0.07 -0.1 |
B | K | L |
| M4 * 0.7P | RHH-FHB-0425 | 0.5-2.5 | 6.0 | 6.7 | 5.9 | 7.0 | 0.5 | 11.0 |
| M5 * 0.8P | RHH-FHB-0530 | 0.5-3.0 | 7.0 | 9.0 | 6.9 | 8.0 | 0.5 | 12.0 |
| M6 * 1.0P | RHH-FHB-0635 | 1.0-3.5 | 9.0 | 10.0 | 8.9 | 10.0 | 0.6 | 16.0 |
| M8 * 1.25P | RHH-FHB-0840 | 1.0-4.0 | 11.0 | 11.5 | 10.9 | 12.0 | 0.65 | 18.0 |
| M10 * 1.5P | RHH-FHB-1035 | 1.0-3.5 | 13.0 | 14.5 | 12.9 | 14.5 | 0.75 | 19.0 |
| M12 * 1.75P | RHH-FHB-1250 | 1.0-5.0 | 16.0 | 15.9 | 17.8 | 1.05 | 25.0 |
