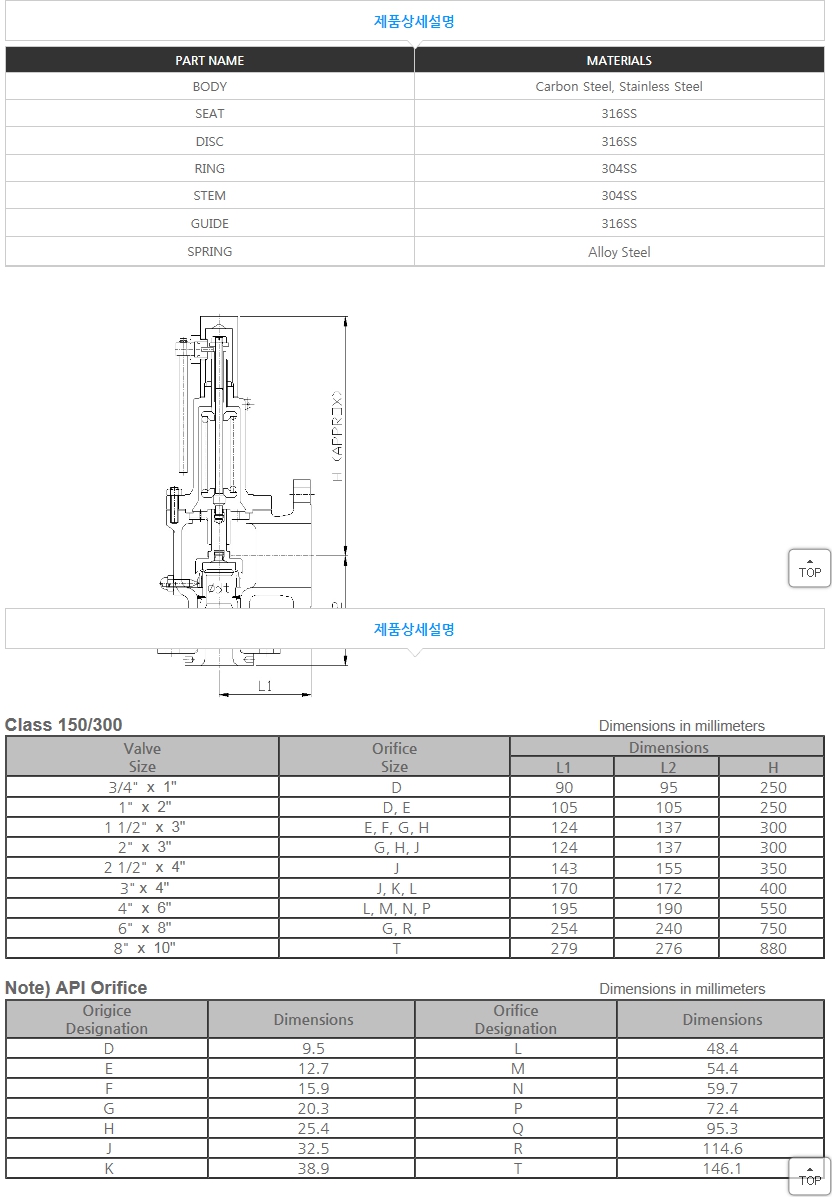

SPECIFICATIONS

• Applicable  Press. Reting:  Class 300 and below
• Applicable Temperature: 200℃ and below
• Applicable Orifice Size: API Orifice D ~ T
• Easy Bellows Installstion
• Less Simmering Range

NOTE

• •
  •
  • API Orifice Designation

 D=9.5mm, E=12.7mm, F=15.9mm, G=20.3mm, H=25.4mm

 J=32.5mm, K=38.9mm, L=48.4mm, M=54.4mm, N=59.7mm

 P=72.4mm, Q=95.3mm, R=114.6mm, T=146.1mm.
