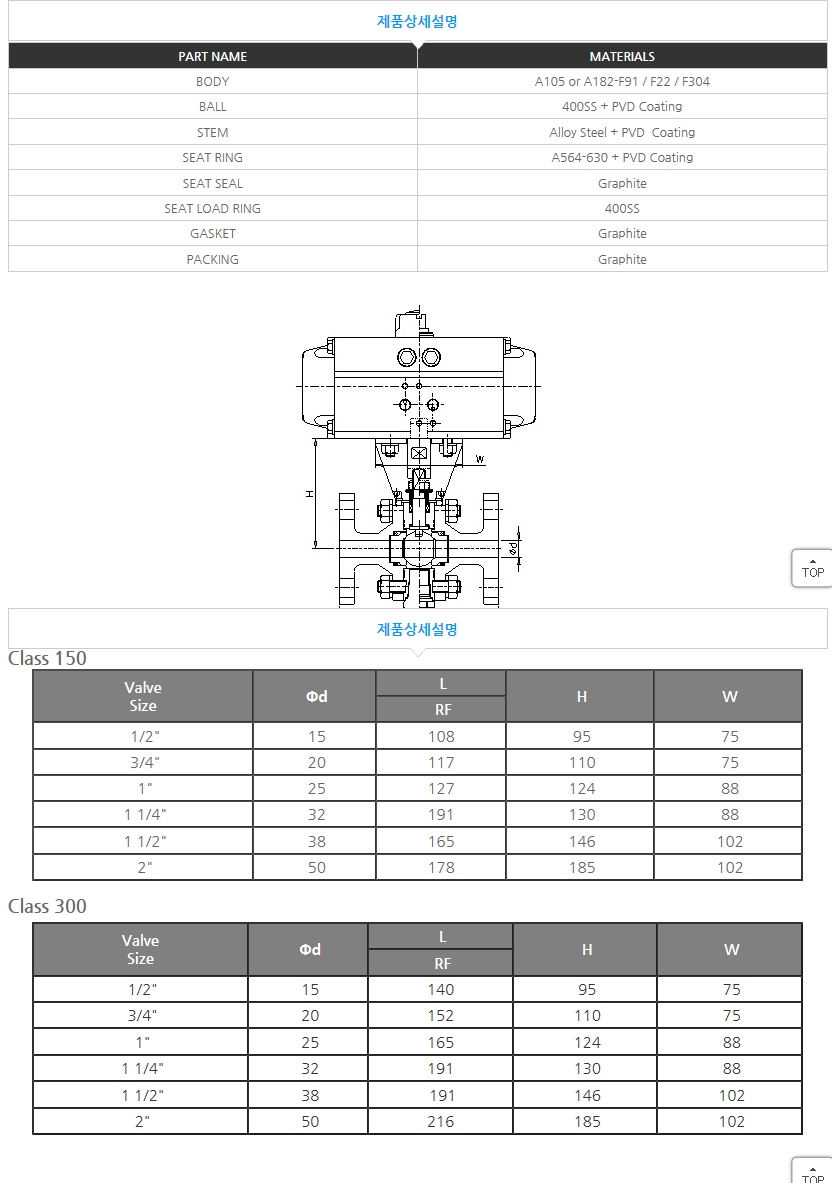

SPECIFICATIONS

• Valve Size: 1/2" ~ 2"
• Applicable Rating: ASME Class 300
• Temperature: Max. . 300℃
• Code & Standard: API, BS, ASME, ASTM

  Designed by

  ASME B16.11 /16.34 /16.5 /BS5351API 6D /API 608 CompliantTested by API 598

• Constructions
  • Three-piece Type /Floating Ball Type
  • End Connection: Socket-welded and Flanged
  • Full Bore /Blow-out Proof Stem
  • Anti-static Design
• Special Order for temperature, 300 ℃ and over.
