Standard Design

◎ Inspection & Test : API598, ANSI B 16.34
◎ Face to Face : Maker Std
◎ Flange Dimension : ANSI B 16.5 JIS B 2212, 2214
◎ Direct Mounting Pad for Easy Automation
◎ Blow-out Proof Stem
◎ Full Bore
◎ Manual Hand Operated, Worm Gear Operated, Pneumatic Operated, Electric Operated, etc.
◎ Pneumatic Operated Air Press : 4kgf/㎠,~6kgf/㎠
◎ Pneumatic Accessories : Solenoid Valve, Limits Switch, Air Unit, Speed Controller (Weather Proof & Water Proof & Explosion Proof)

Operating

Extended lever for easy operation. Also available with gearing, motor actuators, pneumatic or hydraulic actuators for more difficult services.

Available Options

◎ Other Alloy Steels are Available
◎ Fire Safe Design Approved
◎ Anti-static Devices for Ball-Stem-Body
◎ Stem extension

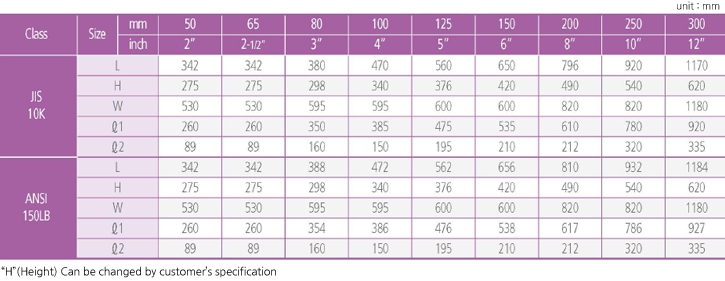

Dimensions
