manual knife grinder
Specification
1 this is a manual model. You need to push the grinding head moveletf and right
2 the down feed system is manual ,working precision is 0.05mm/wheel
3 the working table use clamping table. It used for planer blade and crusher blade.
Model | MFD400 | Motor speed | 2800rpm |
Max sharpening length | 410mm | Motor power | 0.5kw |
Guide length | 600mm | Weight | 45kg |
Size | 740x400x640mm | Stone size | 125x32mm |
KEDA brand best price Australia standard crusher knife-grinder good quality knife sharpener manual machine
knife-grinder is designed according to plastic crusher bits easy to loss which is specially used in sharpening the crusher bits. It has compact structure, comfortable outlook, high efficiency, easy control, is suitable for sharpening and processing each kind of straight edge cutting tool. It is composed of machine frame, operating platform, slide carriage, reduction motor, grinding head, electrical equipment. It is suit for our PP/PE/PET crusher.
Working range: 0-700mm
Move motor: 380V, 60ysj60-4, GS75
Bowl grinding wheel size:BWΦ125*Φ95*Φ32*12
Workbench angle: 0-90 degrees
Grinding wheel lateral movement speed:2.25m/min
Grinding head motor: 380V Y802-2B3, 2.2kw, 2830r/min
Three-phase electricity: 380V, 50HZ, 40W D
machine outline size L*W*H: 1000*600*1290(mm)

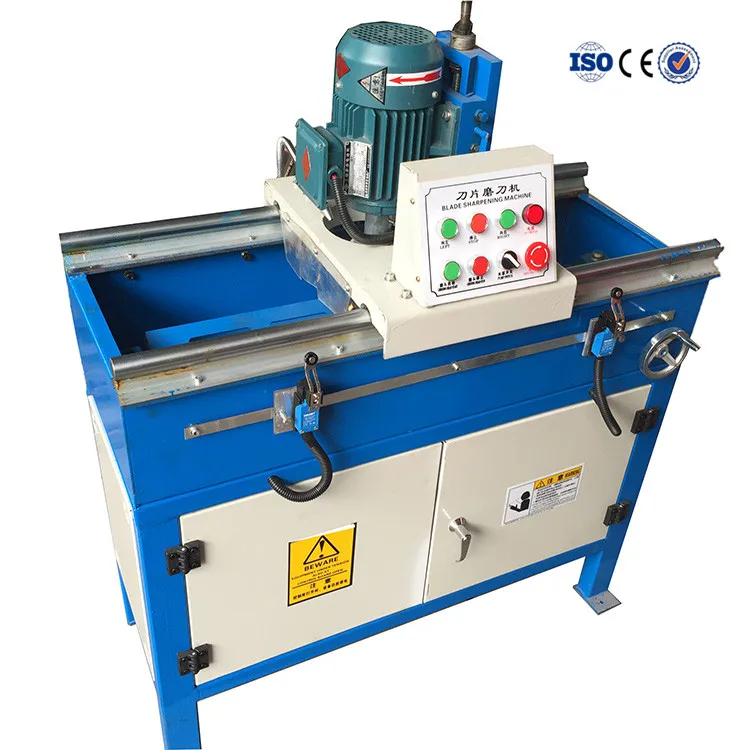

Knife grinder machine
