상세설명

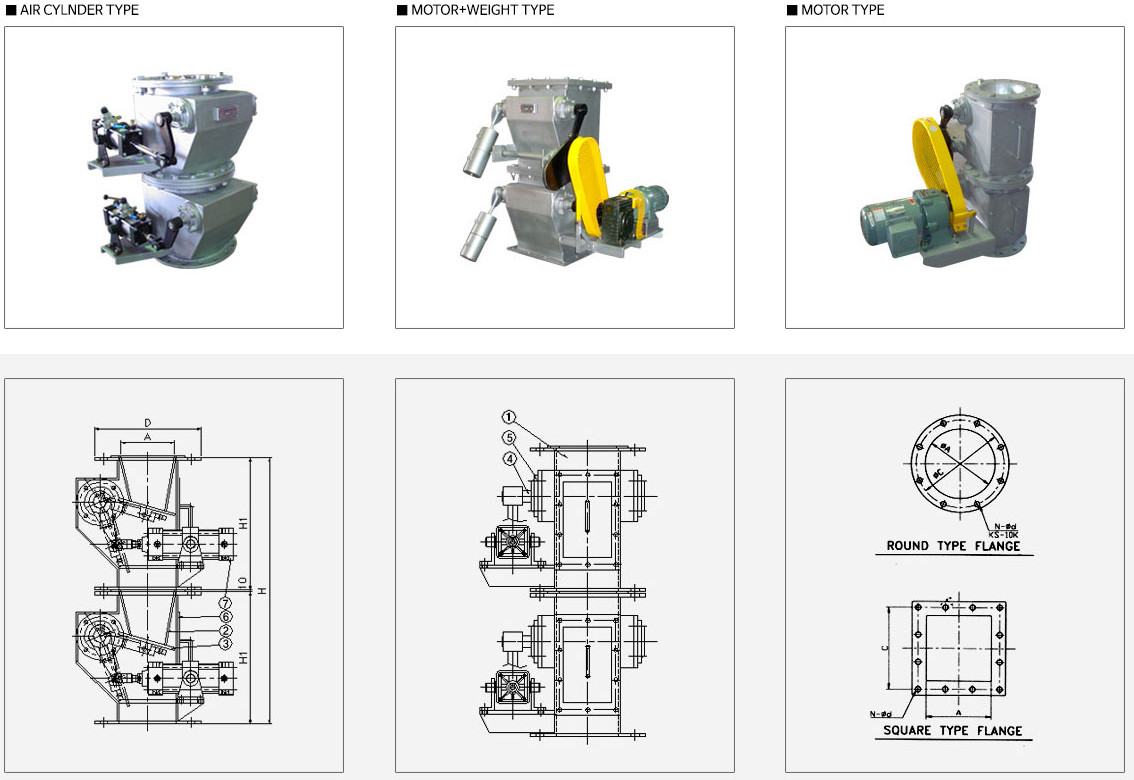

DIMENSIONS
[ 단위(mm)]
| MODEL | A | CAP A(ℓ/C ) | D | C | N-φd | H | H1 |
| YDF-150A,SQ | 150 | 4.5 | 280 | 240 | 8-23 | 560 | 280 |
| YDF-200A,SQ | 200 | 11.0 | 330 | 290 | 12-23 | 780 | 390 |
| YDF-250A,SQ | 250 | 18 | 400 | 355 | 12-25 | 850 | 425 |
| YDF-300A,SQ | 300 | 25 | 445 | 400 | 16-25 | 920 | 460 |
| YDF-350A,SQ | 350 | 32 | 490 | 445 | 16-25 | 1100 | 550 |
| YDF-400A,SQ | 400 | 40 | 560 | 510 | 16-25 | 1200 | 600 |
| YDF-450A,SQ | 450 | 55 | 620 | 565 | 20-27 | 1300 | 650 |
| YDF-500A,SQ | 500 | 70 | 675 | 620 | 20-27 | 1400 | 700 |
| YDF-600A,SQ | 600 | 110 | 795 | 730 | 24-32 | 1700 | 850 |
