상세설명

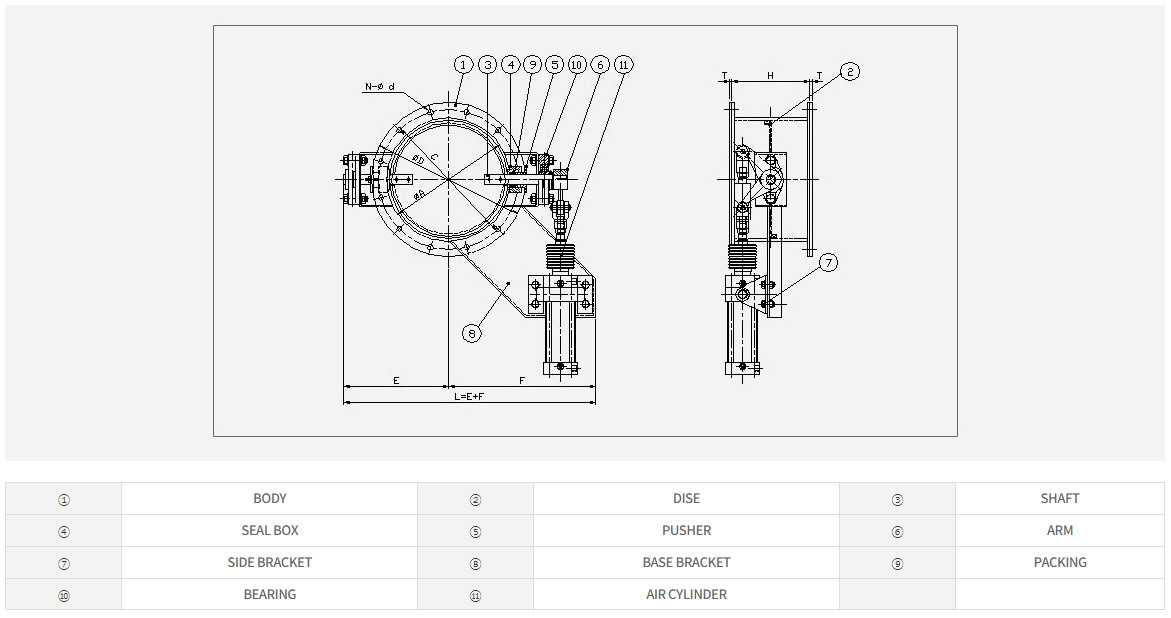

DIMENSIONS
[ 단위(mm)]
| MODEL | A | P.C.D | D | T | H | E | F | N-d |
| YBD-150 | 165.2 | 200 | 230 | 6 | 150 | 190 | 450 | 6-14 |
| YBD-200 | 216.3 | 250 | 280 | 6 | 150 | 215 | 475 | 6-14 |
| YBD-250 | 267.4 | 310 | 345 | 6 | 200 | 250 | 500 | 8-14 |
| YBD-300 | 318.5 | 360 | 395 | 6 | 250 | 275 | 540 | 8-14 |
| YBD-350 | 355.6 | 395 | 430 | 9 | 250 | 300 | 565 | 8-14 |
| YBD-400 | 406.4 | 445 | 482 | 9 | 250 | 330 | 595 | 12-16 |
| YBD-450 | 457.2 | 520 | 560 | 9 | 300 | 360 | 630 | 12-16 |
| YBD-500 | 508 | 565 | 608 | 9 | 300 | 410 | 660 | 16-16 |
| YBD-550 | 550 | 610 | 650 | 12 | 350 | 435 | 690 | 16-16 |
| YBD-600 | 600 | 660 | 700 | 12 | 350 | 460 | 730 | 16-16 |
| YBD-700 | 700 | 760 | 800 | 12 | 400 | 520 | 780 | 20-16 |
| YBD-800 | 800 | 860 | 900 | 14 | 400 | 575 | 850 | 20-16 |
| YBDF-1230 | 1100 | 1170 | 1230 | 15 | 500 | 685 | 1020 | 26-16 |
