상세설명

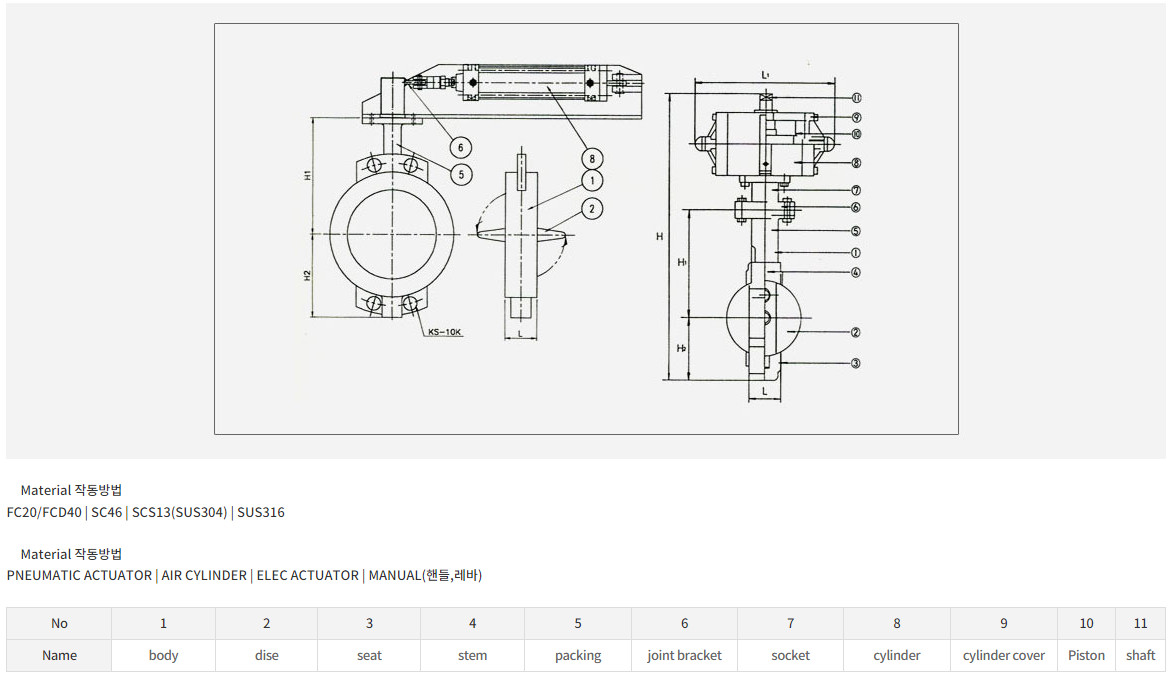

DIMENSIONS
[ 단위(mm)]
| Model | L | L1 | H | H1 | H2 | PT |
| YBV-50 | 41 | 197 | 365 | 130 | 60 | 1/4" |
| YBV-65 | 44 | 197 | 388 | 145 | 68 | 1/4" |
| YBV-80 | 44 | 197 | 407 | 155 | 77 | 1/4" |
| YBV-100 | 51 | 228 | 452 | 170 | 90 | 1/4" |
| YBV-125 | 54 | 228 | 484 | 185 | 107 | 1/4" |
| YBV-150 | 54 | 228 | 510 | 198 | 120 | 1/4" |
| YBV-200 | 64 | 272 | 676 | 240 | 160 | 1/4" |
| YBV-250 | 64 | 272 | 751 | 270 | 205 | 1/4" |
| YBV-300 | 76 | 272 | 831 | 310 | 245 | 3/8" |
| YBV-400 | 102 | 322 | 977 | 325 | 330 | 3/8" |
| YBV-450 | 114 | 322 | 1032 | 365 | 346 | 3/8" |
